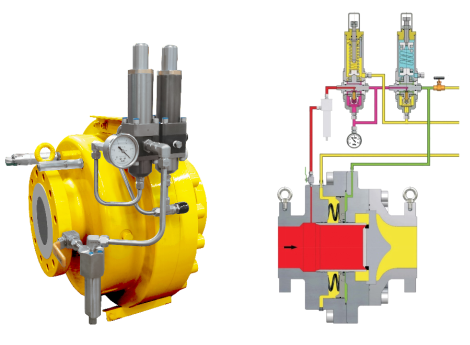

A200 Pressure Regulator
GPR-A200 Pressure Regulator
Execution Standards
EN 334Nominal Size
NPS 1"~ NPS 12"
Nominal Pressure
Class150~ Class900
Connection
Flange
Ambient Temperature
-73℃~+70℃ (can be customized)
Accuracy Class
Upto±1%(AC1)
Lock-Up Pressure Class
Upto 2.5%(SG2.5)
Min. Operating Differential Pressure
0.1MPa
Optional Configuration
Electric heater for pilot, Internal noise reducer, Position transmitter
MaterialsBody Forged steel LF2,etc
Trim Stainless steel, steel, etc

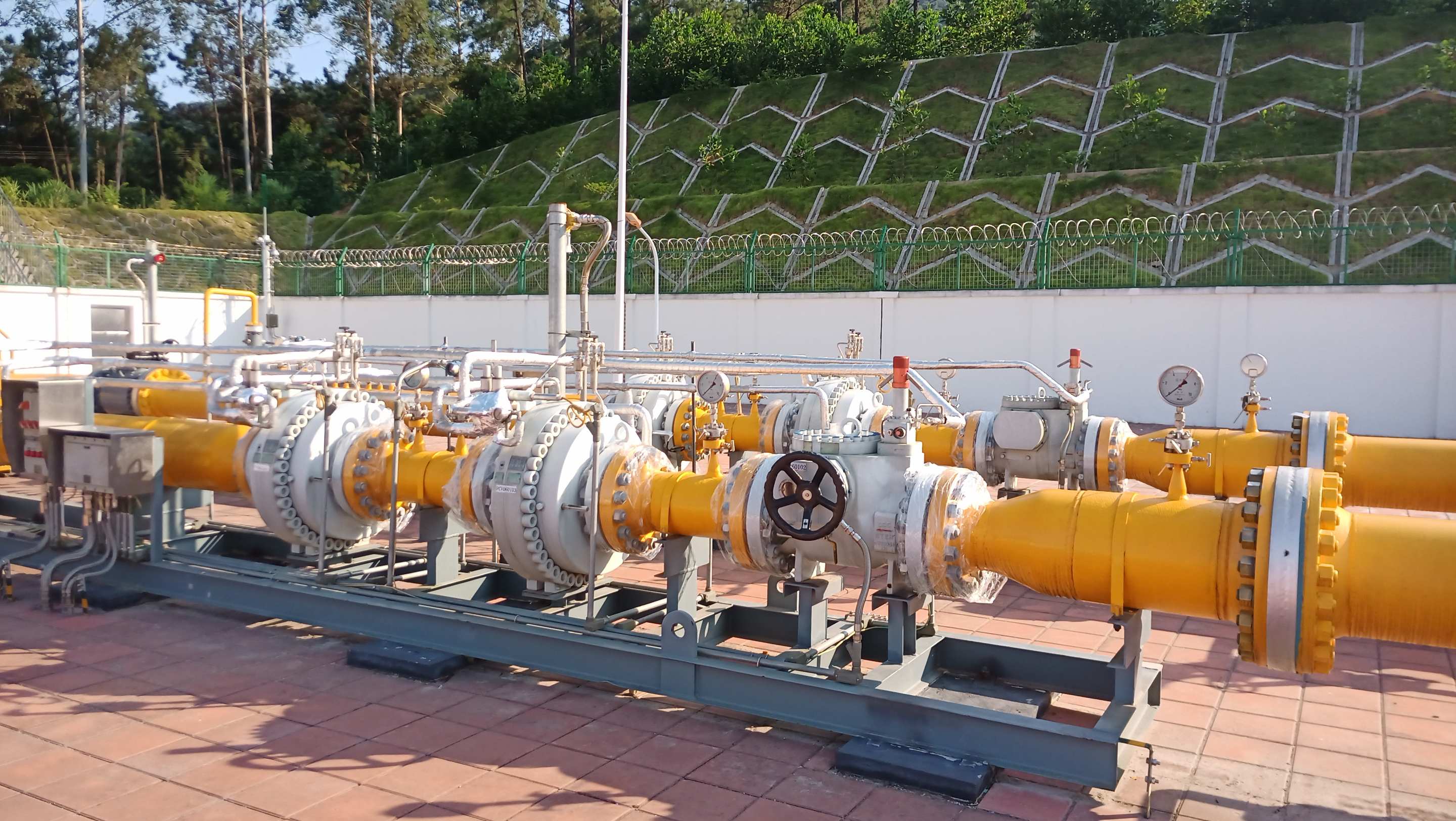

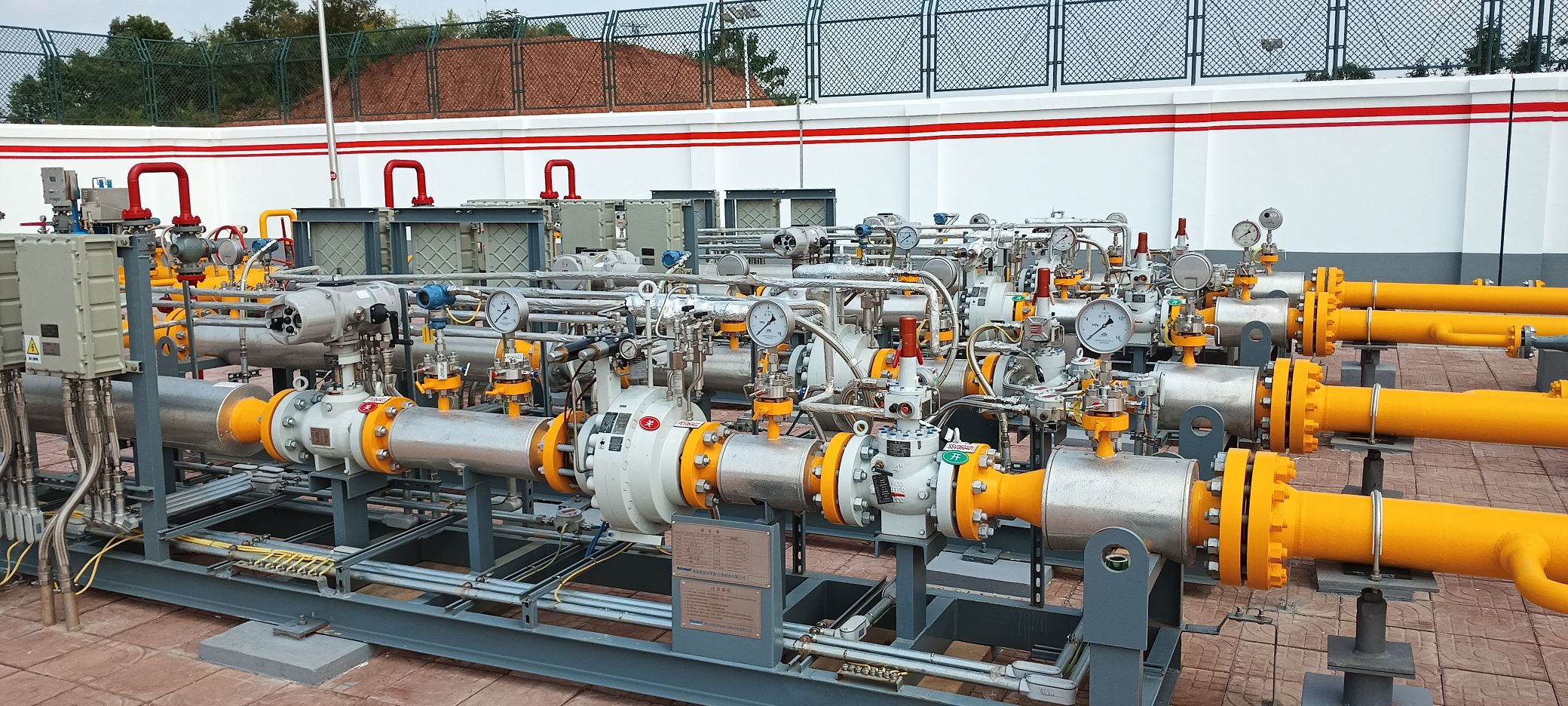

Representative Projegts
National Pipeline Network Guangdong Provincial
Network Yuncheng Transfer Station 2024
DN150 CLASS600 Gas Pressure Regulating Valves 4 Sets
Ma Zhou Village Transfer Station, Hubei-Hunan Branch
National Pipeline Network Group Co., Ltd. 2024
DN100 CLASS600 Gas Pressure Regulating Valves 4 Sets
